Name: TacomaSmelterPlumeFootprint

Display Field: NAME

Type: Feature Layer

Geometry Type: esriGeometryPolygon

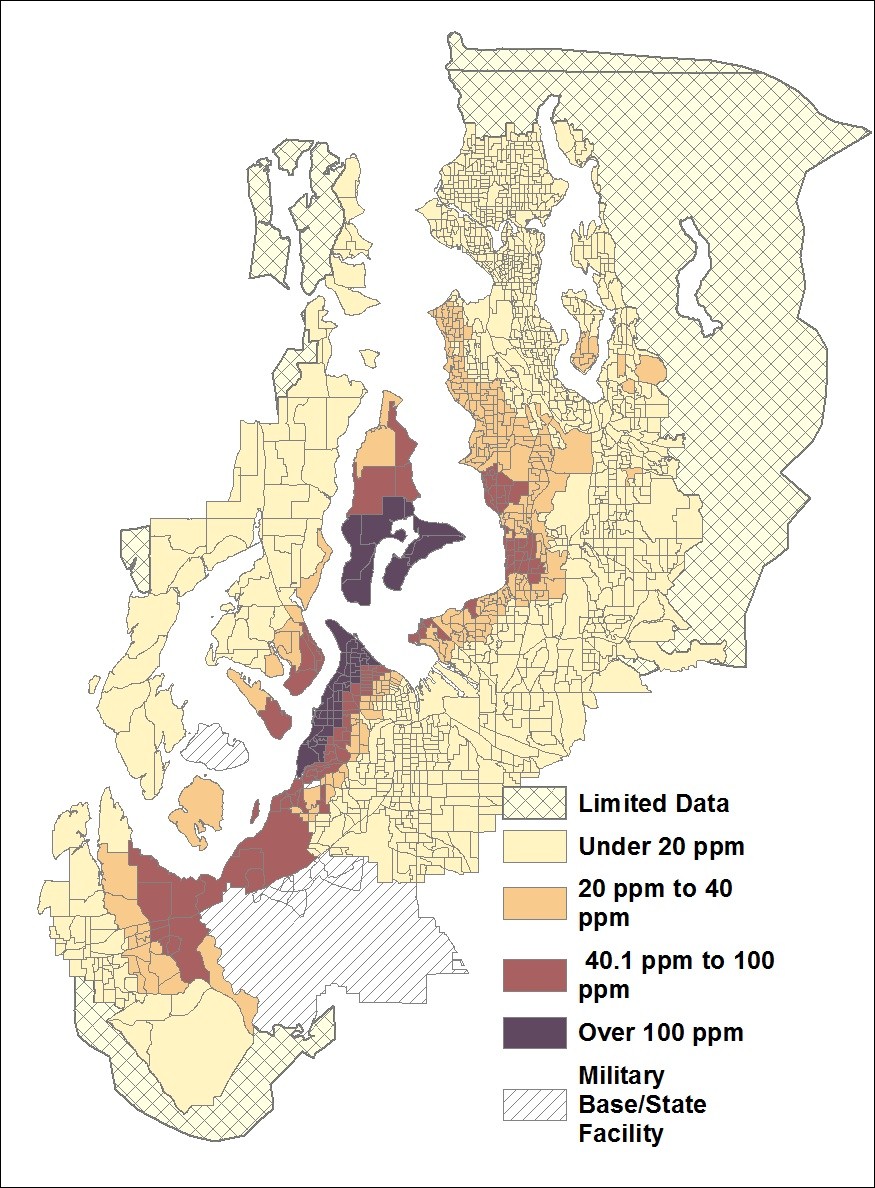

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN>This map shows the general pattern of arsenic contamination from Ruston (Tacoma Smelter Plume) By Census Block Group. With 90% certainty, at least 1 in 10 parcels will have soil arsenic at or above levels shown. Predictions are based on distance and direction from the former Asarco smelter, and on sampling data from forested and other soils undisturbed by development. Actual arsenic levels may vary greatly from parcel to parcel.</SPAN></P></DIV></DIV></DIV>

Service Item Id: 044370bf82e14c13b644504b0f992e3b

Copyright Text: Dr. Pierre Goovaerts and Washington Department of Ecology(Ian Mooser) Please see the "Tacoma Smelter Plume Residential Yard Sampling and Cleanup Program: Program Design and Implementation Plan" Appendix B – "Service Area Map Development" https://fortress.wa.gov/ecy/publications/SummaryPages/1309081.html

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 5.91657529E8

Max Scale: 70.52

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 1041400.831839174
YMin: 571139.2494124919
XMax: 1303005.416896671
YMax: 908666.2023099959
Spatial Reference: 2927  (2927)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: NAME
Field 2: N/A
Field 3: N/A
Field Delimiter: ,
Default Symbol:
N/A
Default Label: N/A
UniqueValueInfos:
• Value: Under 20 ppm
  Label: Under 20 ppm
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [255, 244, 194, 255]
  Outline:
  N/A
• Value: 20 to 40 ppm
  Label: 20 ppm to 40 ppm
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [248, 202, 140, 255]
  Outline:
  N/A
• Value: 20 ppm to 40 ppm
  Label: 20 ppm to 40 ppm
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [248, 202, 140, 255]
  Outline:
  N/A
• Value: 40 to 100 ppm
  Label: 40.1 ppm to 100 ppm
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [168, 96, 96, 255]
  Outline:
  N/A
• Value: 40.1 ppm to 100 ppm
  Label: 40.1 ppm to 100 ppm
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [168, 96, 96, 255]
  Outline:
  N/A
• Value: Over 100 ppm
  Label: Over 100 ppm
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [96, 72, 96, 255]
  Outline:
  N/A
• Value: Military Base/State Facility
  Label: Military Base/State Facility
  Description: N/A
  Symbol:
  Style: esriSFSForwardDiagonal
  Color: [178, 178, 178, 255]
  Outline:
  Style: esriSLSSolid
  Color: [178, 178, 178, 255]
  Width: 0
• Value: Limited Data
  Label: Limited Data
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [40, 146, 199, 0]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 255]
  Width: 0
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: false
Supports Query With Current User: true

HasZ: true

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• TARGET_FID ( type: esriFieldTypeInteger, alias: TARGET_FID )
• NAME ( type: esriFieldTypeString, alias: NAME, length: 50 )
• GEOID10 ( type: esriFieldTypeString, alias: GEOID10, length: 12 )
• POP2010 ( type: esriFieldTypeDouble, alias: POP2010 )
• HU2010 ( type: esriFieldTypeDouble, alias: HU2010 )
• SingleFami ( type: esriFieldTypeDouble, alias: SingleFami )
• Totalparcels ( type: esriFieldTypeDouble, alias: Totalparcels )
• Numberofparcelsover100ppm ( type: esriFieldTypeDouble, alias: Numberofparcelsover100ppm )
• ThresholdAppm ( type: esriFieldTypeDouble, alias: ThresholdAppm )
• ThresholdBppm ( type: esriFieldTypeDouble, alias: ThresholdBppm )
• Comments ( type: esriFieldTypeString, alias: Comments, length: 255 )
• MILES_FROM ( type: esriFieldTypeDouble, alias: MILES_FROM )
• WIND_ROSE ( type: esriFieldTypeString, alias: WIND_ROSE, length: 254 )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• Shape.STArea() ( type: esriFieldTypeDouble, alias: Shape.STArea() )
• Shape.STLength() ( type: esriFieldTypeDouble, alias: Shape.STLength() )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• created_user ( type: esriFieldTypeString, alias: created_user, length: 255 )
• created_date ( type: esriFieldTypeDate, alias: created_date, length: 8 )
• last_edited_user ( type: esriFieldTypeString, alias: last_edited_user, length: 255 )
• last_edited_date ( type: esriFieldTypeDate, alias: last_edited_date, length: 8 )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
